| MOQ: | 1 |
| Prijs: | To be Quoted |
| Standaardverpakking: | Veiligheidskartonpakket of multiplexbox |
| Leveringstermijn: | 30 werkdagen |
| Betalingswijze: | T/T |
| Toeleveringskapaciteit: | 10 sets per maand |
| Item Name | Parameters |
|---|---|

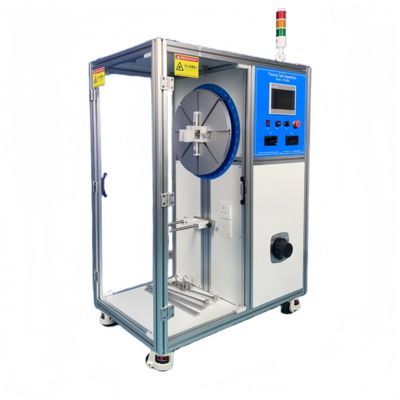

| Model | KP-8820A |
| Test station | 1 station |
| Flexing angle | 0-720°. Can be preset |
| Flexing speed | 0~60 rpm, can be preset |
| Load weights | 113g, 1N, 5N, 10N |
| Test times | 0~999999 times, can be preset |
| Starting position (origin) selection | The starting position can be set arbitrarily so that the irregular sample cord exit is perpendicular and substantially coincides with the center of rotation to minimize lateral displacement. |
| Operation principle | The servo motor drive system is adopted, high regulation precision of swing angle and speed. |
| Built-in load | The device has a built-in load 5KW voltage regulator, which can adjust the voltage from 0 to 250V and display the current and voltage digitally. |
| Power | 220V 50/60Hz |
| Control | With visual touch screen display and PLC control, control and parameter settings are very intuitive and convenient. |
| Signal indication | Test completion and disconnection alarm indicator display |
Video
|
|
| MOQ: | 1 |
| Prijs: | To be Quoted |
| Standaardverpakking: | Veiligheidskartonpakket of multiplexbox |
| Leveringstermijn: | 30 werkdagen |
| Betalingswijze: | T/T |
| Toeleveringskapaciteit: | 10 sets per maand |
| Item Name | Parameters |
|---|---|
| Model | KP-8820A |
| Test station | 1 station |
| Flexing angle | 0-720°. Can be preset |
| Flexing speed | 0~60 rpm, can be preset |
| Load weights | 113g, 1N, 5N, 10N |
| Test times | 0~999999 times, can be preset |
| Starting position (origin) selection | The starting position can be set arbitrarily so that the irregular sample cord exit is perpendicular and substantially coincides with the center of rotation to minimize lateral displacement. |
| Operation principle | The servo motor drive system is adopted, high regulation precision of swing angle and speed. |
| Built-in load | The device has a built-in load 5KW voltage regulator, which can adjust the voltage from 0 to 250V and display the current and voltage digitally. |
| Power | 220V 50/60Hz |
| Control | With visual touch screen display and PLC control, control and parameter settings are very intuitive and convenient. |
| Signal indication | Test completion and disconnection alarm indicator display |
